Leading Silica MineCore Wall Panel Manufacturer

Silica Mineral Wall Panel, an ideal alternative towall tiles with locking system.

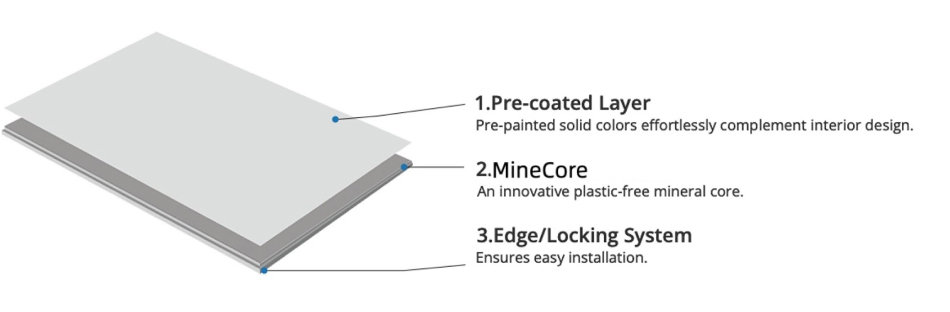

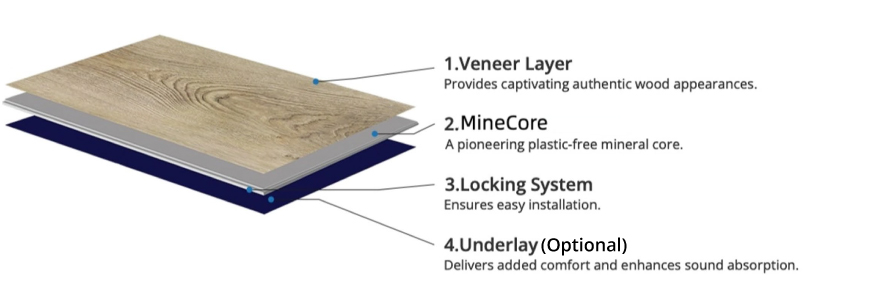

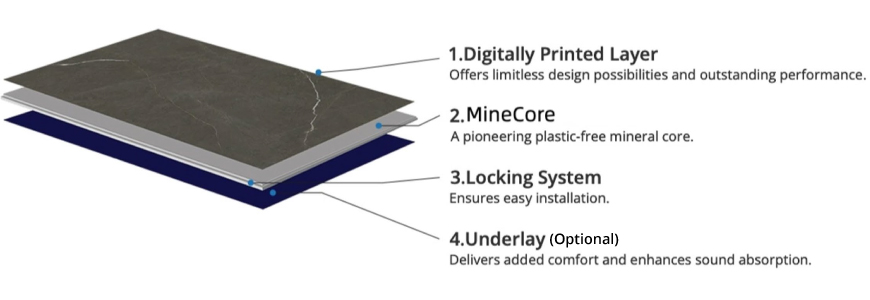

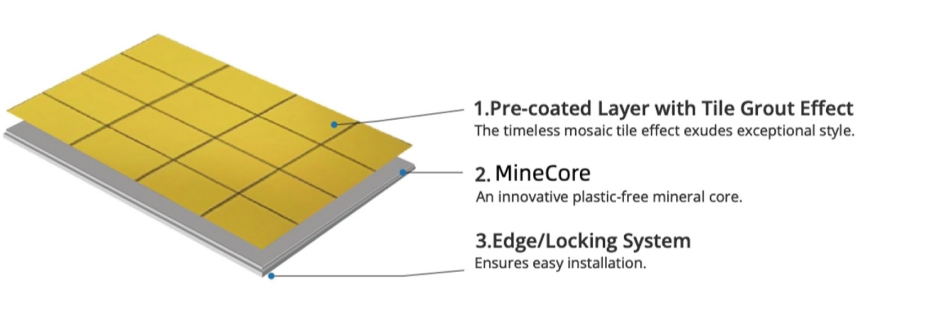

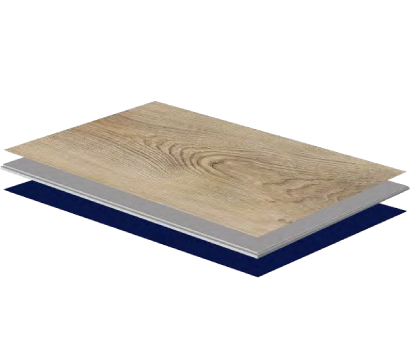

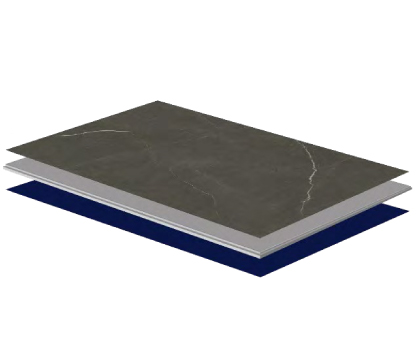

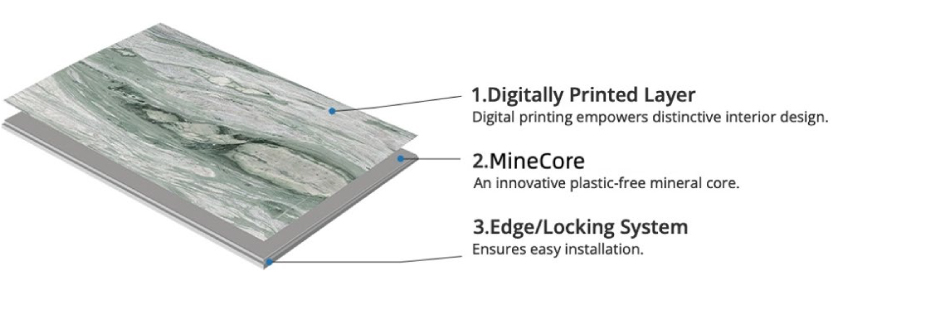

PRODUCT STRUCTURE

Product introduction

What is MineCore?

MineCore (Former Name: Quartz Core, Silica Mineral Panel) is an eco-friendly building material that can withstand continuous high operation temperatures. It is a light weight, low thermal conductive and high strength product.

Main Components:

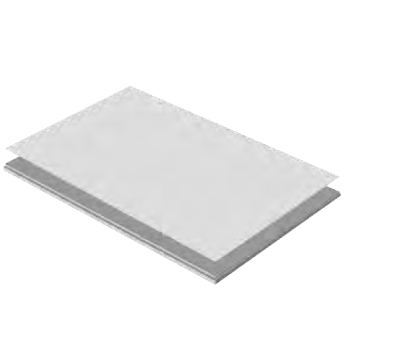

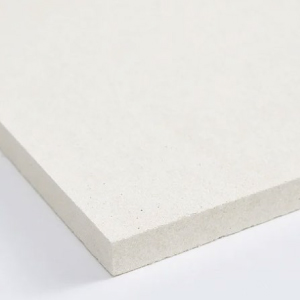

Calcium Silicate Board

What is Calcium Silicate Board?

Ingredients are reacted together under heated steam and high-pressure to form the Tobermorite crystals.
The board is cured by an autoclaving process with just water and no added glue and other formaldehyde containing substances.

MineCore Wall Panel

MineCore Floors

SEND US YOUR INQUIRY TODAY

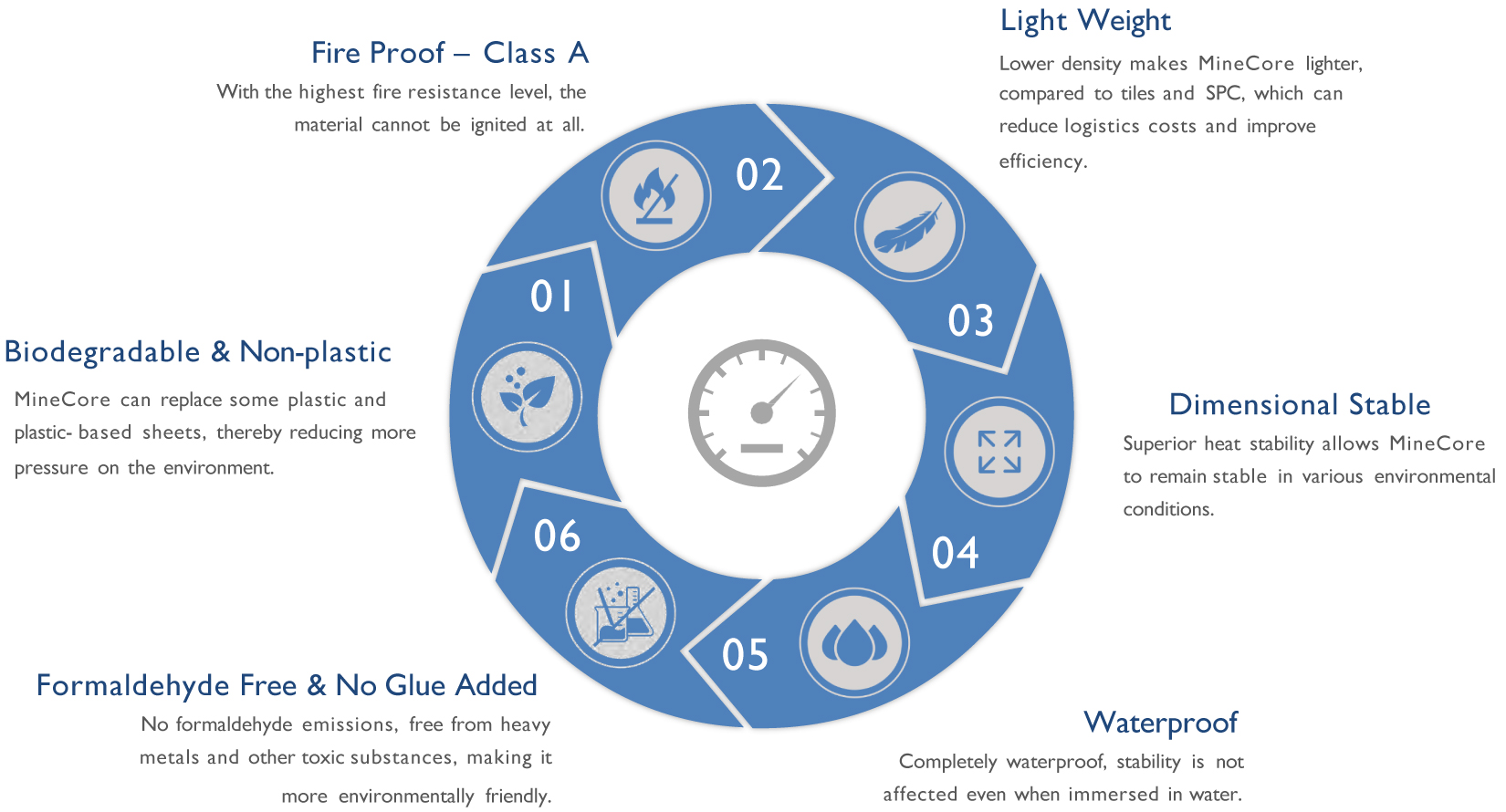

FEATURES

CONTACT OUR SUPPORT TEAM

PROPERTIES OF DIGITAL PRINTING WALL PANEL

Test Item	Test Method	Result
Bending strength	EN 12467:2012+A2:2018	Average≥10.0MPa
Resistance to staining	EN ISO 26987:2012	Index 0, Not affected
Moisture movement	EN 12467:2012+A2:2018	Length direction: 0.06% Width direction: 0.06%
Adhesion(Cut-cross test)	ISO 2409:2020	Class 0
Pencil hardness	ISO 15184:2020	≥HB

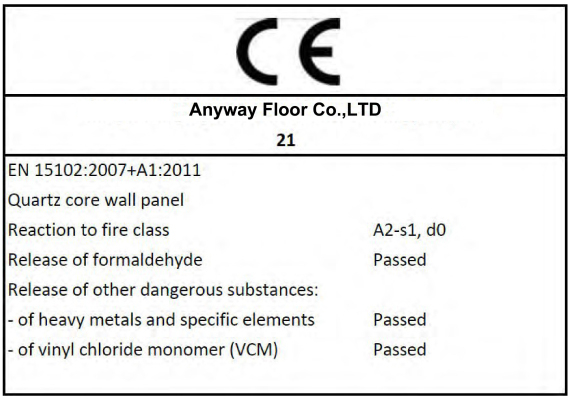

Fire resistance	EN 13501-1:2018	Class A2 - s1, d0
Fire resistance	ASTM E84	FSI=0, SDI=25, Class A
Fire resistance	CAN/ULC 102	FSV=0, SDV=22
Colour fastness to artificial light	ISO 105-B02:2014	Grade 6
Micro-scratch resistance	EN 16094:2012, Procedure A	MSR-A2
Thermal Resistance	EN 12664:2001	Average: 0.045 (m2·K)/W
Asbestos content	NIOSH 9002:1994	Negative
Fungi resistance	ISO 846:2019	No growth
Total Cadmium (Cd) Content	US EPA method 3050B/3051	ND(≤Detection limit =5 ppm)
Phthalate content test (DBP/DEHP/BBP/DINP/DIDP/DnHP/DHEXP)	CPSC-CH-C1001-09.3	ND(≤Detection limit =100 mg/kg)
Bisphenol A Content	In house method	ND(≤Detection Limit = 1 ppm)
Flame Retardant content (TDCPP/TECP/TDBPP)	In house method	ND(≤Detection Limit = 10 ppm)

CONSULT ANYWAY EXPERT

PRODUCT PORTFOLIO

MineCore For Walls & Floors

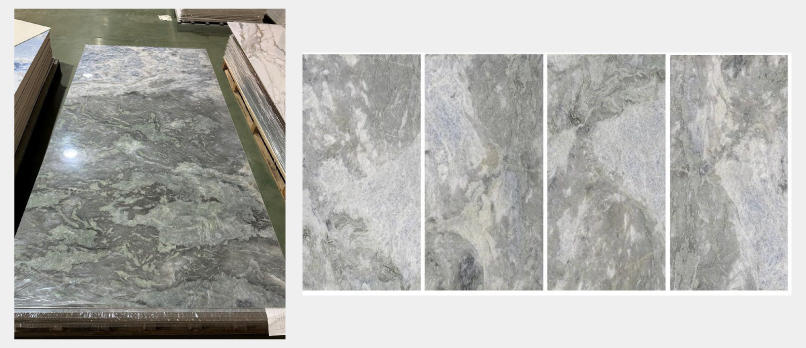

Digital Printing Wall Panel

-High Gloss / Matte / Skin Touch

-Luxury Stone Design

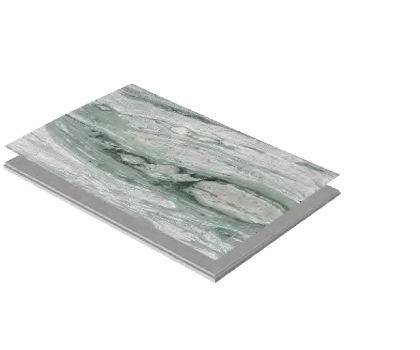

Pre-coating Wall Panel

-Solid Colour Design

-Customized Color

Hybrid Floors

-Topped with veneer
-Patented Click System

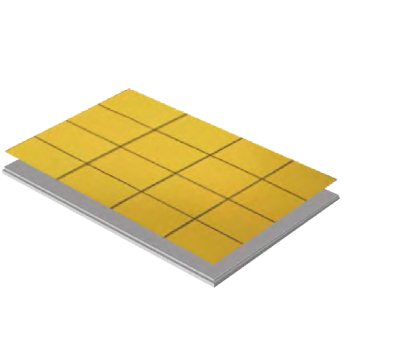

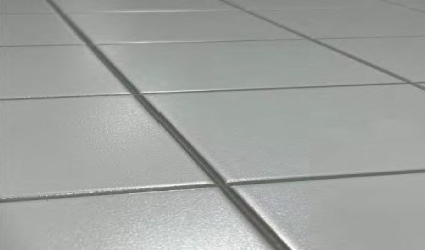

EasyTile

-Tile Grout Effect
-Solid Colour Design

Digital Printing Floors

-Digital Printing Surface

-Patented Click System/T&G

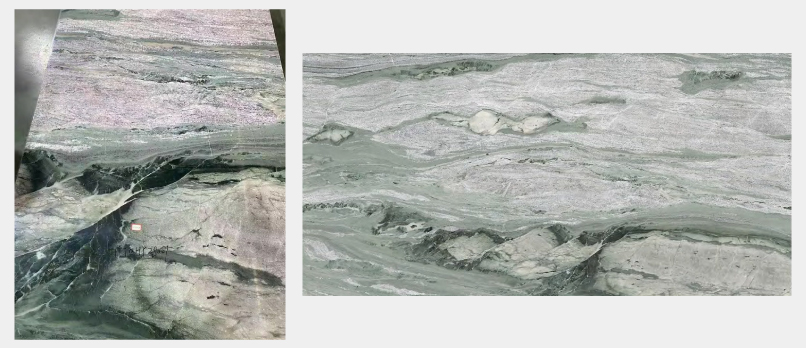

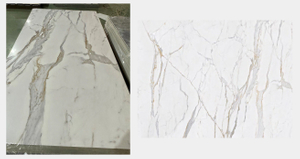

MineCore Digital Printing Wall Panel

GET THE LATEST PRICE

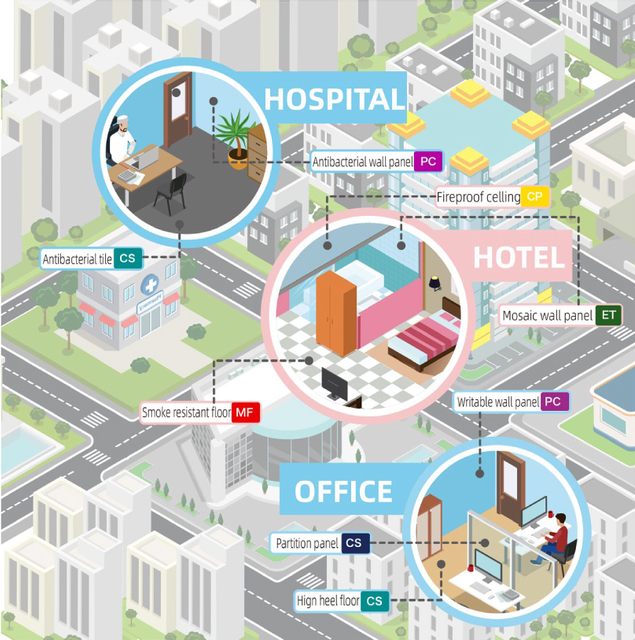

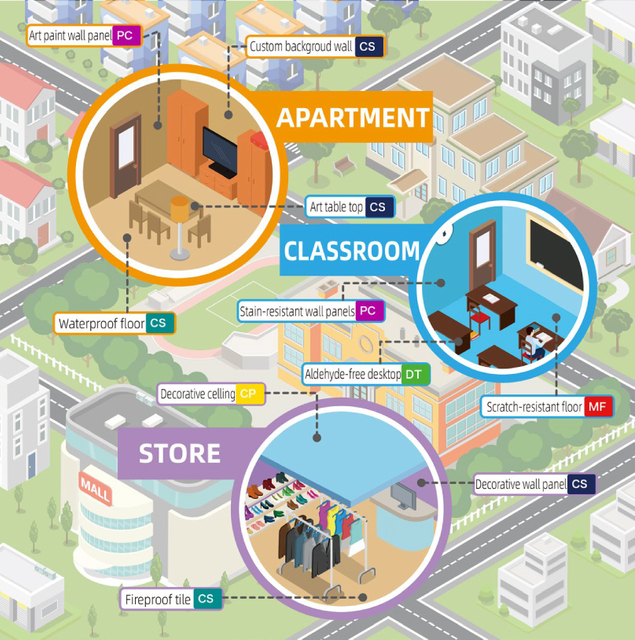

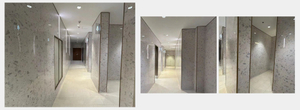

APPLICABLE SCENARIOS

From commercial space to Education, Health care,Office,Re-Home，products as Environmentally friendly, efficient and high-performance building materials show great vitality in various fields.

SEND US YOUR INQUIRY TODAY

R&D

R&D OF TECHNIQUE

Research and Development Team: We have multiple experienced R&D teams dedicated to in-depth and continuous research ininnovation inspiration, market analysis, product development, testing,and customer feedback.

Patent Ownership: We are actively applying for various patents inMineCore product technology, including 6 inventions andseveral utility models. In terms of pattern development, we areconsistently applying for appearance patents and copyrights.

Innovation lnitiative: Our R&D team is young, dynamic, and filledwith entrepreneurial passion. We are continuously focusing on theresearch and development of inorganic building materials, aiming toaddress the shortcomings of traditional products. We aspire tocreate new products with superior surfaces, stable cores, andexcellent cost-effectiveness, bringing innovation to the industry.

R&D OF TECHNIQUE

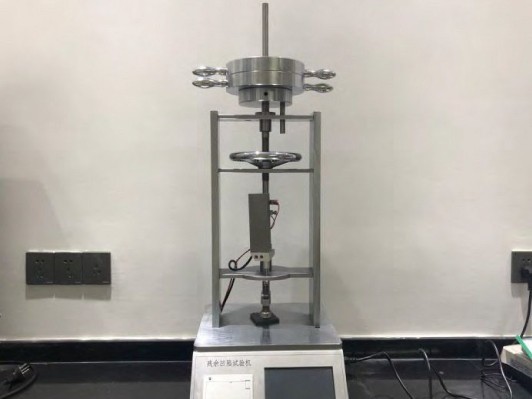

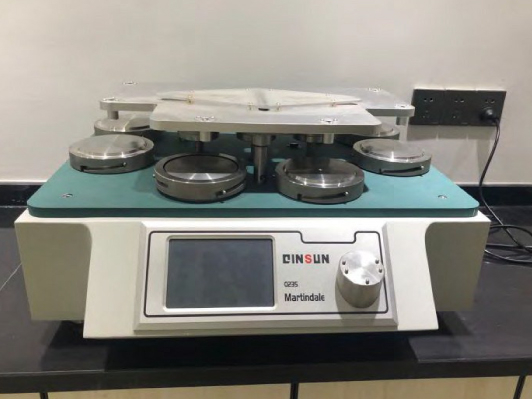

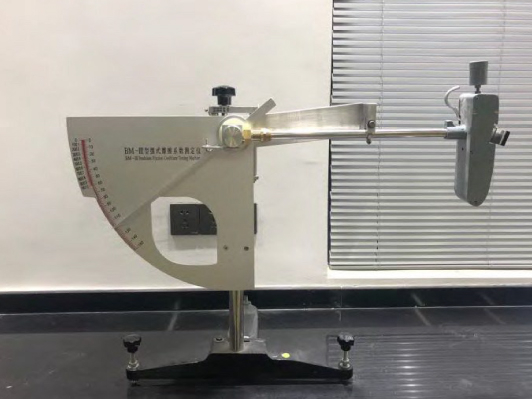

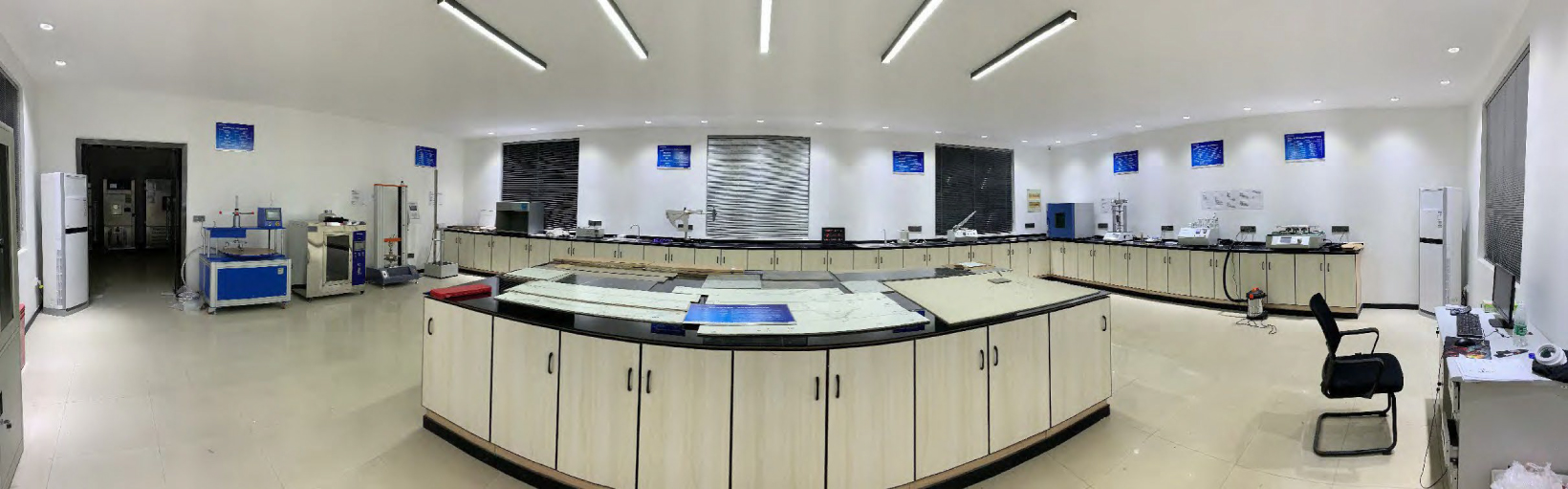

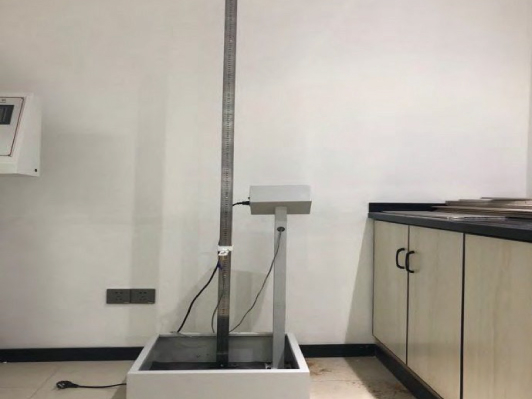

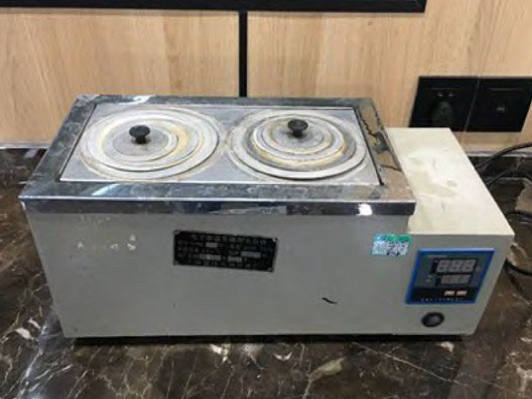

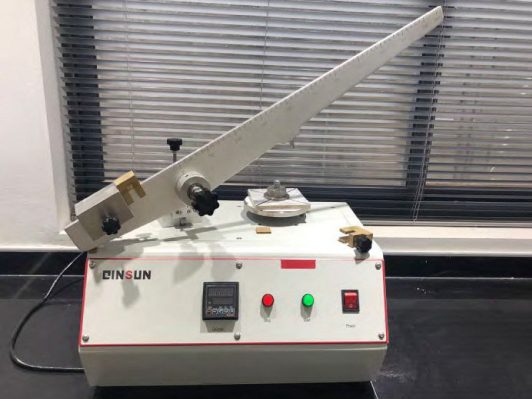

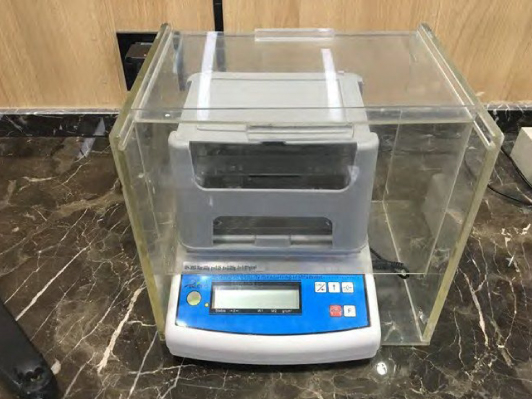

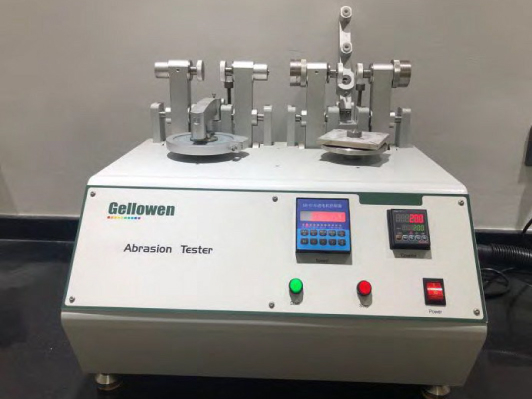

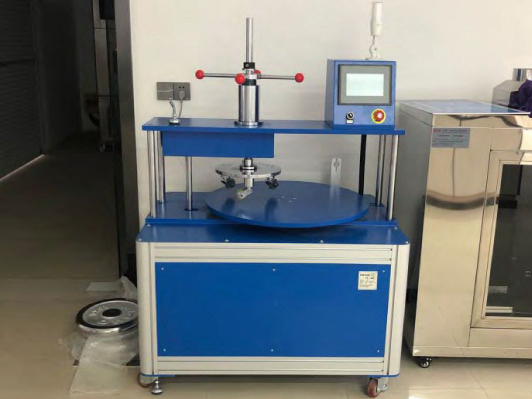

While constructing the production system at LONGlNG, we also prioritize the establishment of a laboratory. Currently, thelaboratory is essentially equipped to conduct testing according to common European and American standards forflooring and wall materials.

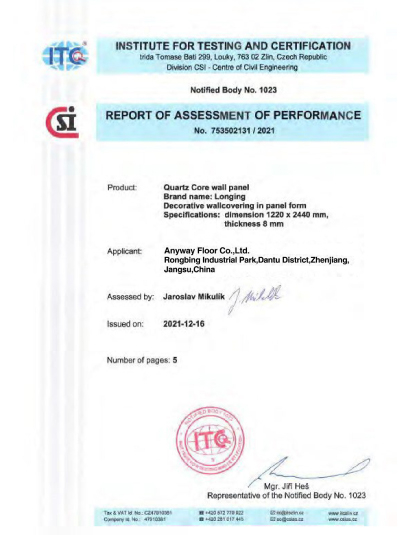

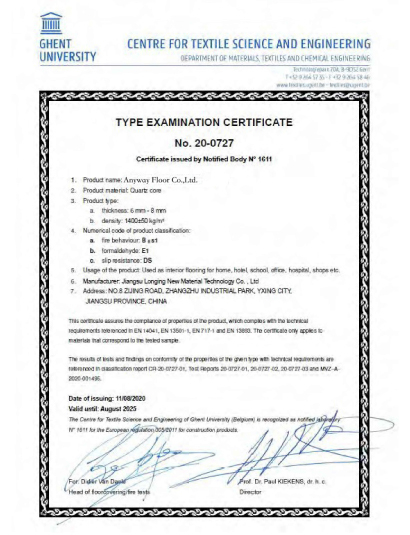

INTERTEK conducted relevant standard training for LONGiNG's laboratory from june 4 to 6, 2020, and issued thecorresponding certification.
